Low Profile Pallet Lift Tables


Enquire about this product

Many applications require the regular loading and unloading of palletised goods. Repetitive lifting and stretching can be time consuming and hazardous.Using pallet lift tables elevates pallets to the optimum lift height reducing the risk of repetitive strain injury and increasing productivity.



  • Low clearance

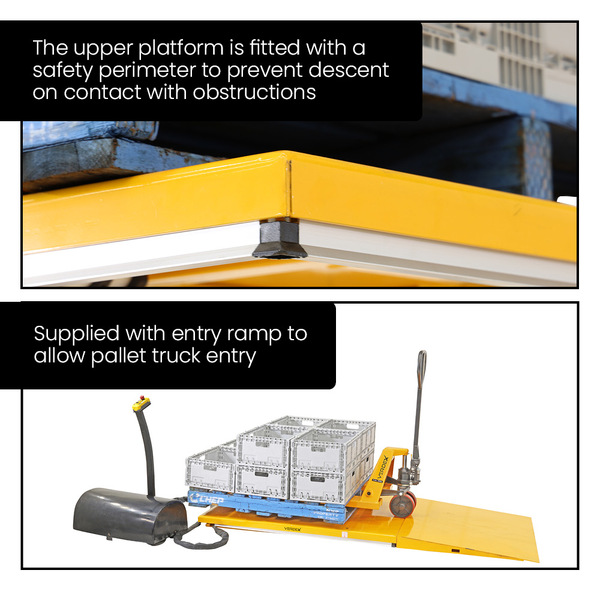

  • Supplied with entry ramp to allow pallet truck entry
  • Can be supplied with optional rotator ring (product SKU TR2140)
  • Tables are specially made for handling pallets, no need for a pit or load ramps
  • Upper platform fitted with safety perimeter to prevent descent on contact with obstructions
  • 24v control box with UP and DOWN buttons and emergency stop
  • External power pack equipped with a relief valve against overloading and a compensating flow valve for controlling lowering speed
  • Hose burst safety valve to stop the lift table lowering in case of hose breakage
  • Removable lifting eyes to facilitate handling and installation of the lift table
  • Oil-less bushings on pivot points

Buying Options

SKU Name
TR2100 Lift Table (Including Ramp) 1000kg capacity
TR2101 Lift Table (Including Ramp) 2000kg capacity

SKU

Capacity

 Platform Size

MIn Height

Max Height

TR2100 1000kg 1140x1420mm 85mm 880mm
TR2101 2000kg 1180x1600mm 105mm 880mm











SKU

Capacity

 Platform Size

MIn Height

Max Height

TR2100 1000kg 1140x1420mm 85mm 880mm
TR2101 2000kg 1180x1600mm 105mm 880mm



SKU TR2100P
Brand Liftex
Unit Of Measure ea
